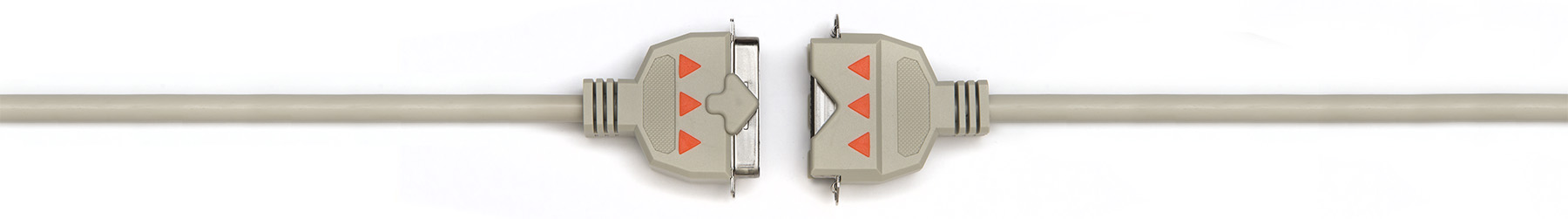

BREAKAWAY CABLES

Hospitals move fast. It’s what enables caregivers to provide the best possible care to the most patients. Unfortunately, that speed comes with risks. When hospital personnel forget to disconnect cords before moving a patient’s bed, the result can be damaged cords, a compromised patient station, and a room that’s out of service, affecting the entire care process. At BBT Repairs we help keep your patient rooms operational and your hospital moving smoothly — and quickly — with our Breakaway Bed Cables.

For use with Hill-Rom®, Stryker®, Carroll® (CHG®), Linet®, and ArjoHuntleigh® beds
Available for most common nurse call systems
Various lengths are available
Each half of the breakaway cable can be purchased separately
One year warranty

ADVANTAGES OF USING OUR BREAKAWAY CABLES

NON-STANDARDIZED BEDS

If your facility has multiple types of nurse call systems or beds, moving beds from room to room can be a challenge. BBT Repairs breakaway cables give you a common connection in every room regardless of bed type or nurse call system. One section is permanently attached at the wall, and the other section is permanently attached to the bed. Use them throughout your facility, and you can freely move beds from room to room.

RECEPTACLE AND CABLE DAMAGE

Is this a common sight after a bed gets moved? It doesn’t need to be. Aside from being a costly repair, a damaged wall receptacle or patient station can put a room out of service for days. By using a breakaway cable from BBT Repairs, you minimize the chance of this type of damage happening. If the bed is moved without disconnecting the cable, the unique two-piece design safely breaks apart at a point away from the wall, reducing cable replacement and receptacle repair costs, and most importantly, minimizing patient risk.

UNUSED BED FEATURES

Are the advanced features of your beds going unused because it’s too much trouble to plug them in? With a bed communication cable from BBT Repairs, a bed comes to life. It becomes a communication center, linking the patient to nurse call systems, televisions, and other room technologies — even delivering potentially life-saving data. Using a breakaway cable lets you use all the features of the bed while having a simple and quick way to disconnect the bed when it needs to be moved.

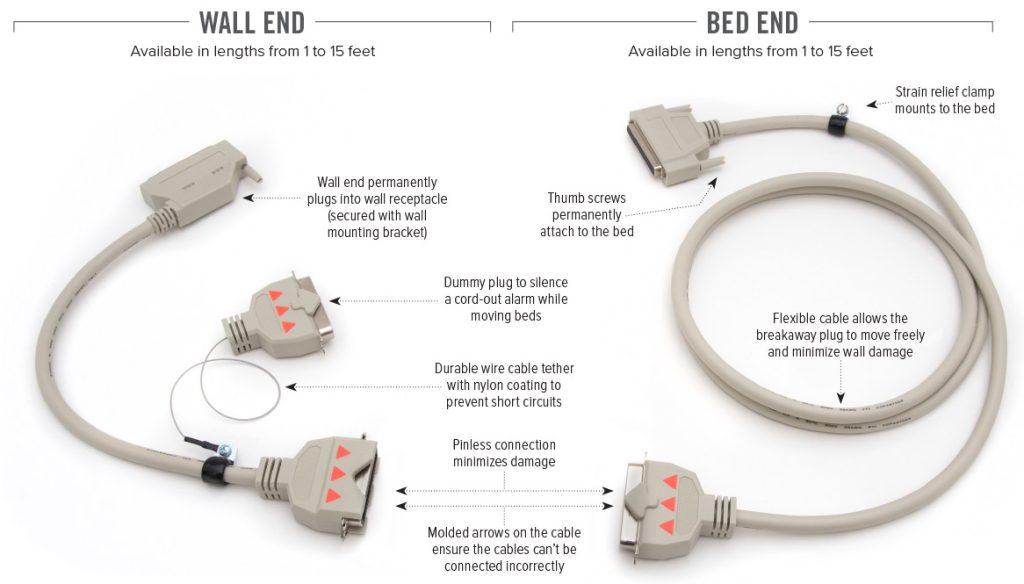

How to use a breakaway cable

Step 1

Plug the wall end of the cable into the wall plate and tighten the thumbscrews.

Step 2

Install the bracket to permanently mount the cable.

Step 3

Plug the cable into the bed, tighten the thumbscrews, and screw the strain relief clamp into the bed to permanently mount the cable.

Step 4

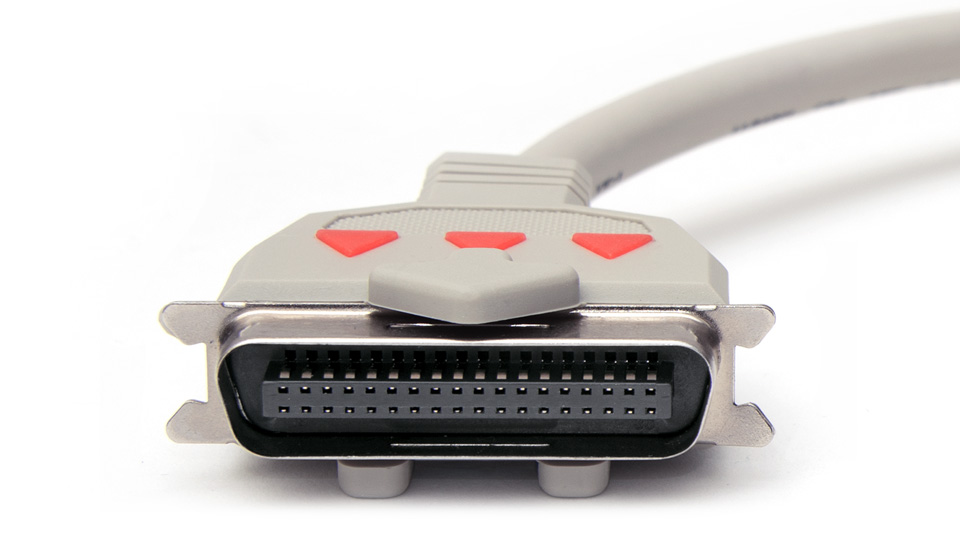

Connect the breakaway cable’s pinless connectors.

Step 5

When moving the bed, disconnect the cables and place the dummy plug into the wall end of the cable.

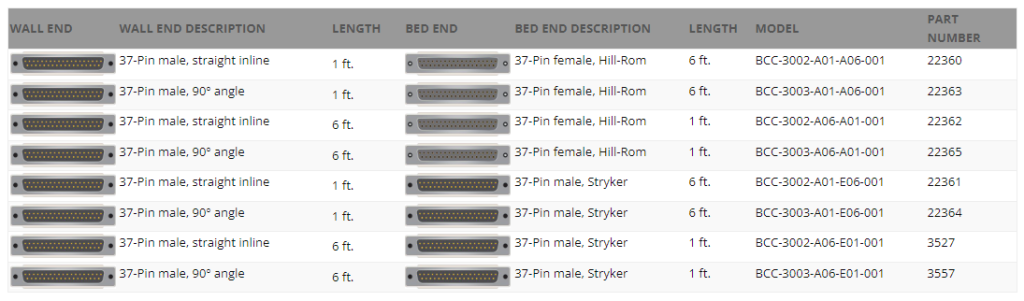

Part Numbers

Part numbers for most common standard 37-pin connections are listed below.
Wall and bed half cables are also available separately in 1, 2, 4, 6, 8, 10, 12, and 15 foot lengths.
